RF & Microwave Antenna Engineering · Hyderabad, India

Antennas engineered for Defence, Aerospace & Railways

From resonant elements to reflector systems and phased arrays, every Rudrix antenna is designed, simulated, built and validated in-house.

Discuss Your Requirement View Antenna Range
  • 5Antenna families
  • 14Antenna types
  • 200 MHz – 40 GHzReflector coverage
  • 100%In-house design

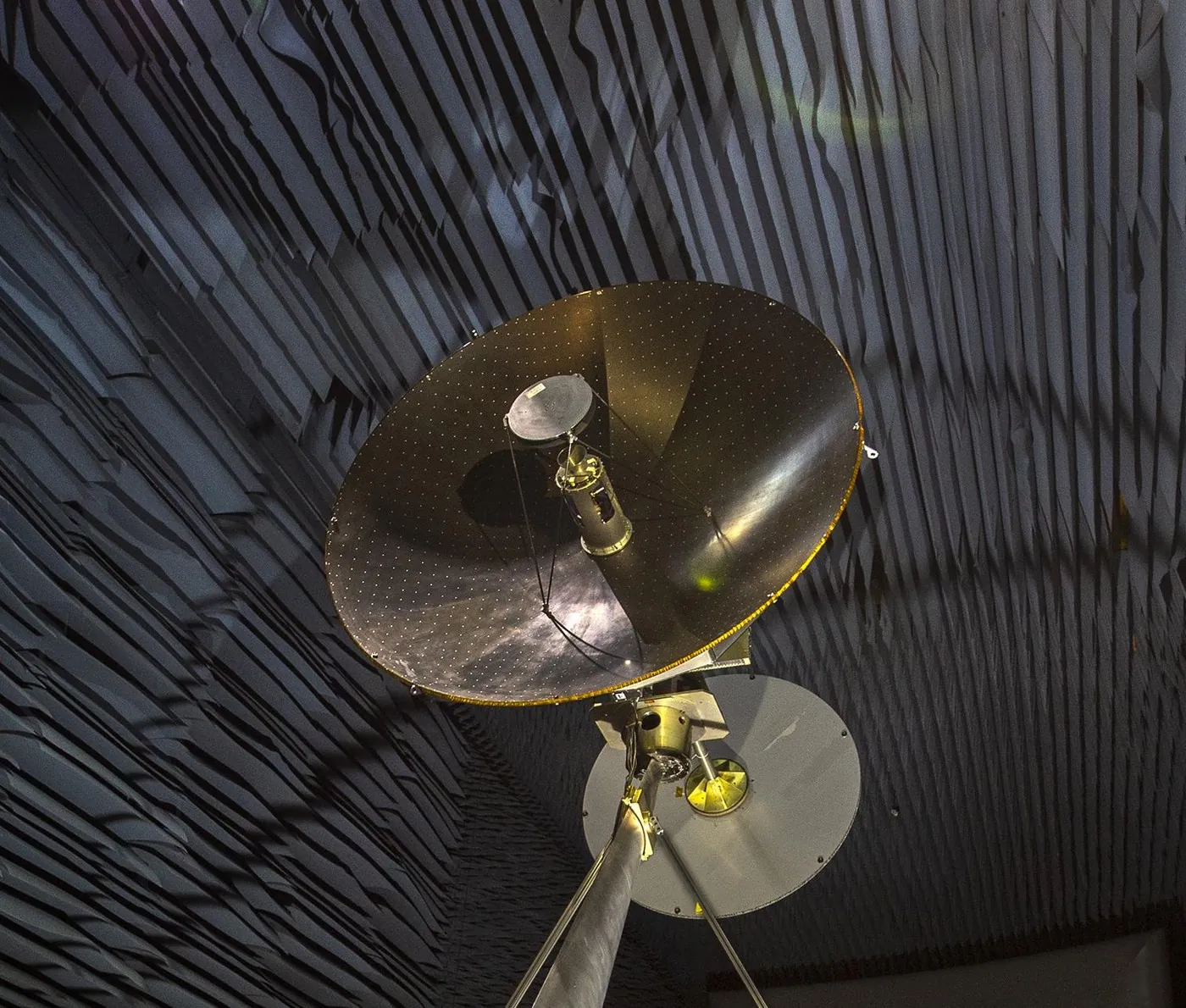

Reflector antenna under test inside an anechoic chamber

About Us

Indigenous RF engineering, built for self-reliance

Rudrix Microwave Private Limited (RMPL) is a Hyderabad-based engineering company specialising in the design and development of antennas for Defence, Aerospace and Railway applications.

In line with the Make in India and Aatmanirbhar Bharat vision, every product is conceived, simulated, prototyped and validated by our own engineering team. Customers get full design ownership, faster iterations and dependable long-term support.

  • Antennas designed to your frequency, gain and pattern specifications
  • Rapid prototyping and design iteration
  • Rugged construction for harsh field environments
  • Support across the lifecycle, from concept to production

Sectors We Serve

Engineered for critical platforms

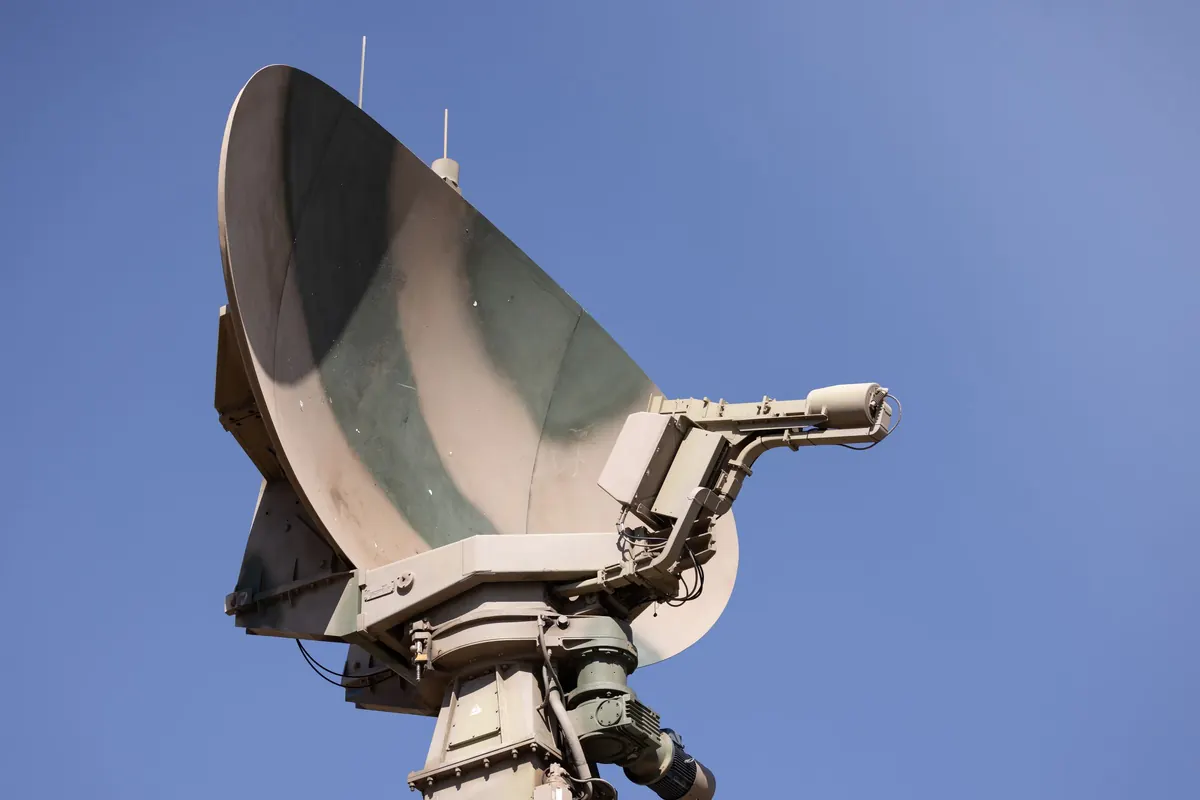

Military tracking radar antenna

Defence

Antennas for communication, radar, electronic warfare and surveillance on land, naval and airborne platforms.

  • Radar & tracking
  • EW, ESM & direction finding
  • Tactical communication
Airborne early-warning aircraft with rotating radar dome

Aerospace

Antennas for aircraft, UAVs and satellite ground systems, built to withstand vibration, altitude and temperature extremes.

  • Telemetry & tracking
  • UAV data links
  • Satellite ground stations
Indian Railways locomotive under overhead electrification

Railways

Antennas for train communication, signalling and safety systems, designed for Indian Railways operating conditions.

  • Train-to-ground communication
  • Signalling & train protection
  • Trackside & roof-mount antennas

Antenna Range

Five antenna families, fourteen types

Standard designs and fully custom developments. Every antenna is tailored to your band, gain, polarisation and platform.

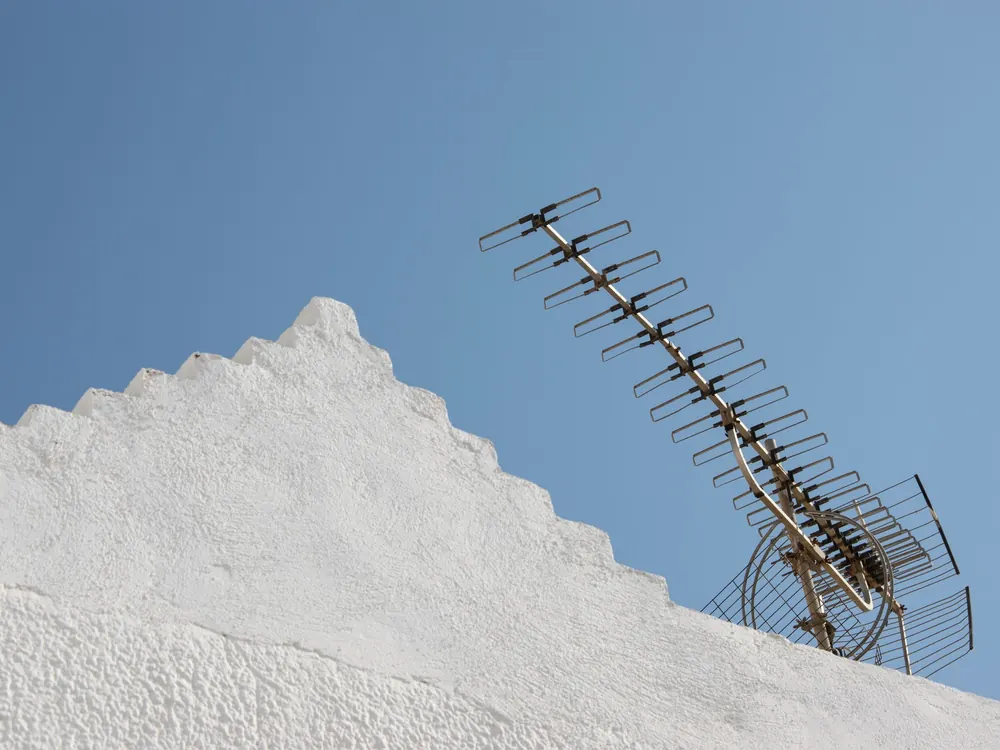

Rooftop dipole element array against a blue sky
01

Resonant Antennas

Efficient narrowband radiators tuned to a design frequency, and the building blocks of larger arrays.

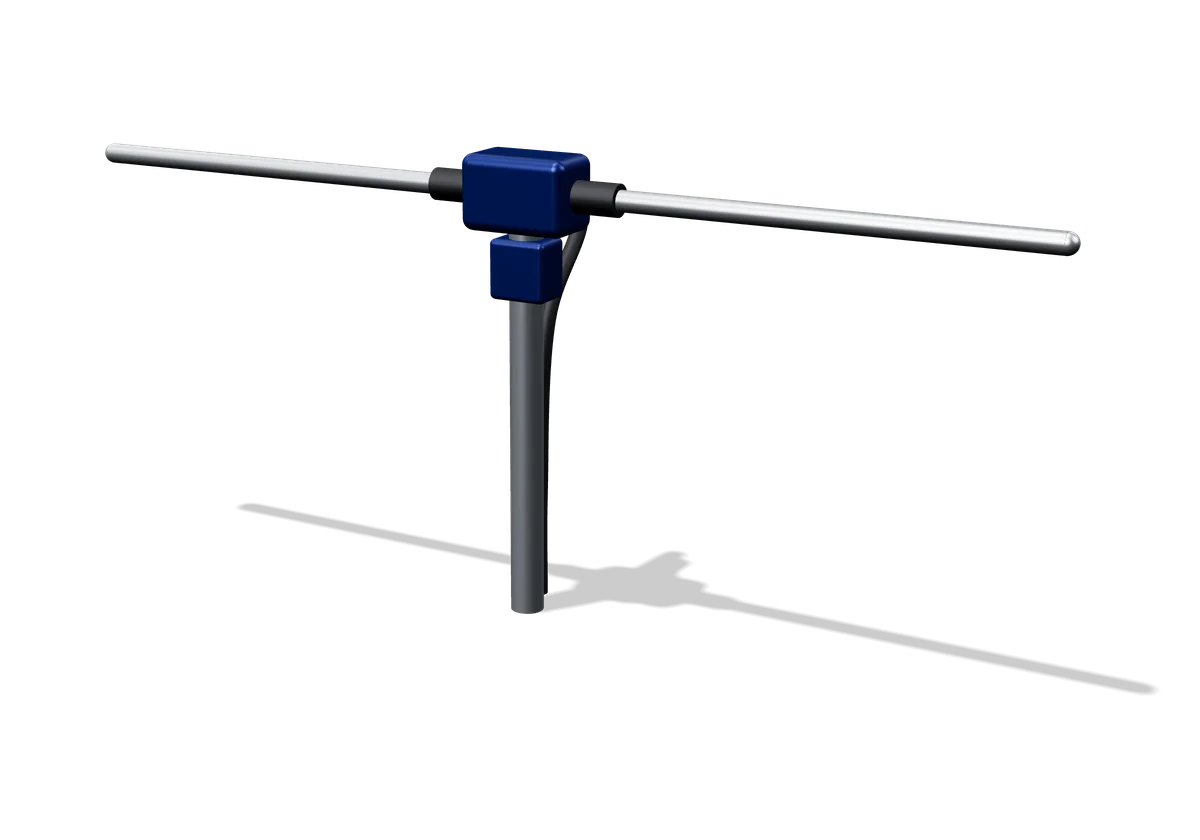

3D render of dipole antenna

Dipole Antenna

A balanced half-wave radiator with an omnidirectional azimuth pattern, used for links and as an array element.

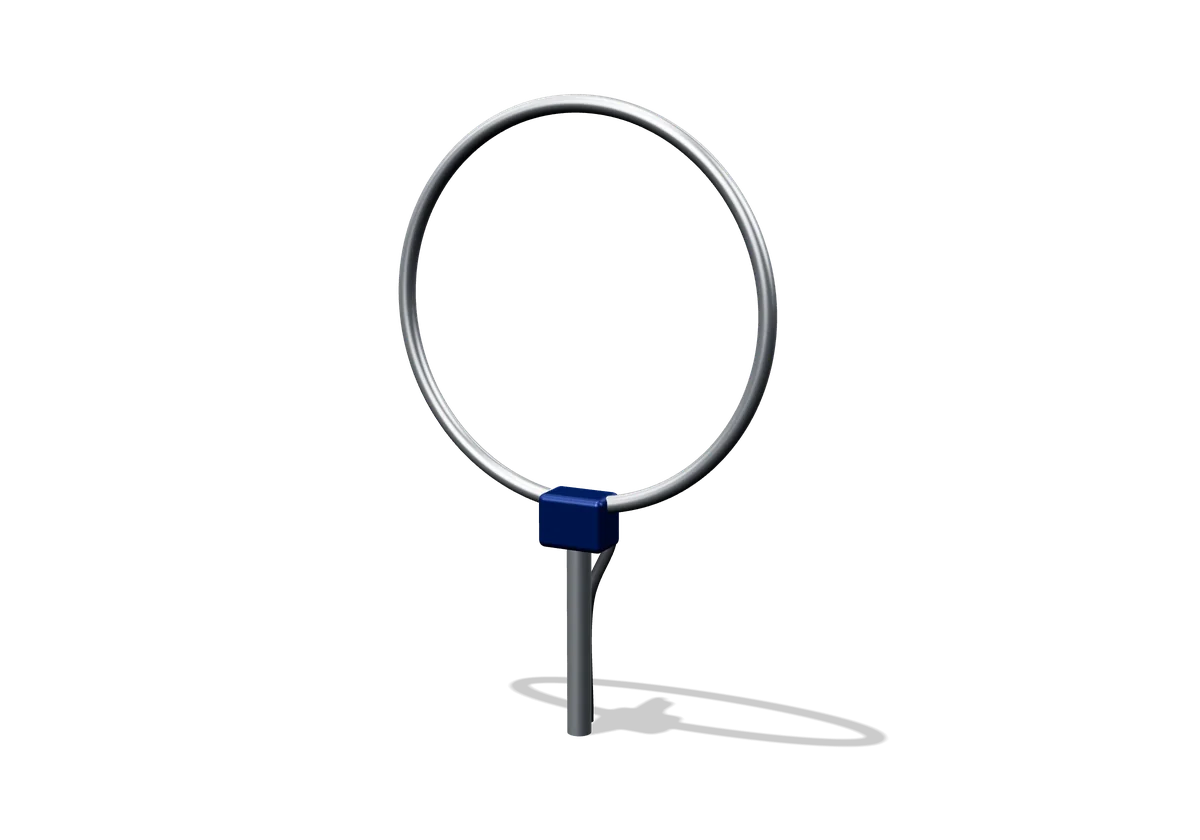

3D render of loop antenna

Loop Antenna

Small and resonant loops for direction finding, HF/VHF reception and compact installations.

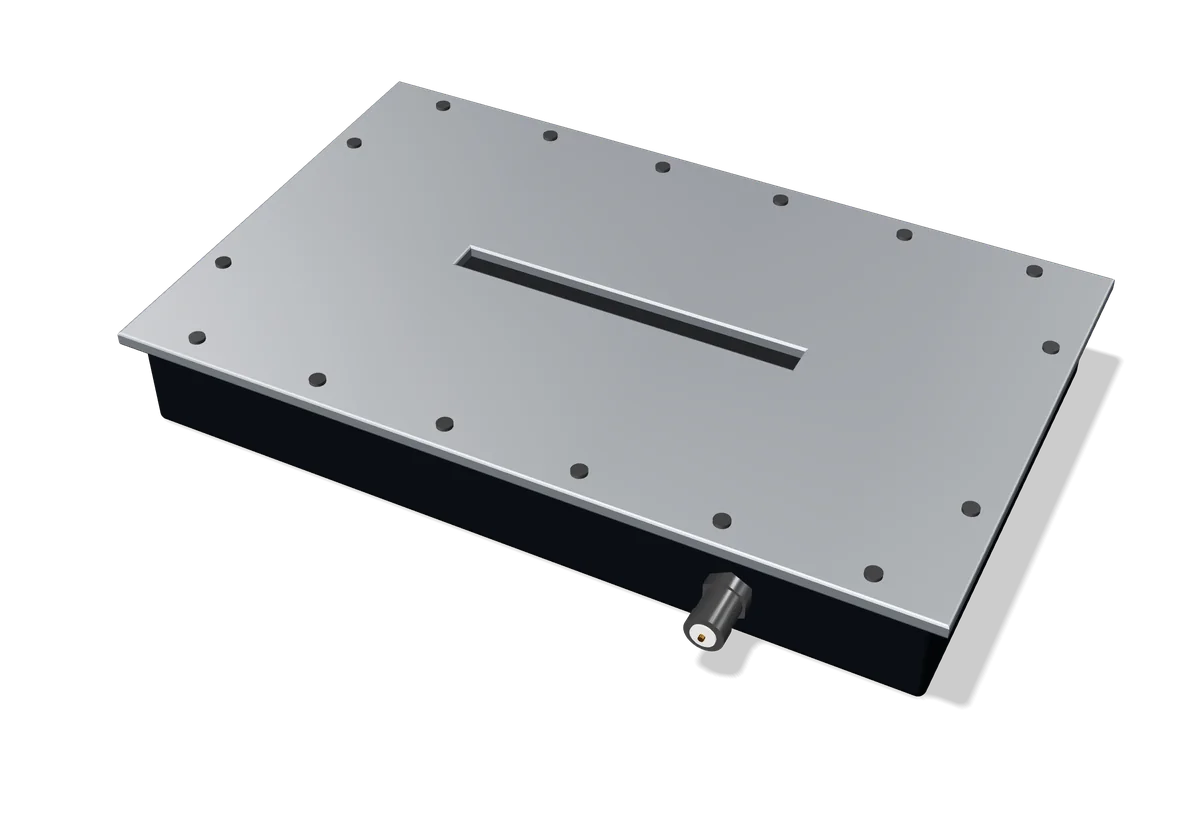

3D render of slot antenna

Slot Antenna

A slot cut into a conducting surface, giving flush, low-profile mounting on airframes, vehicles and waveguides.

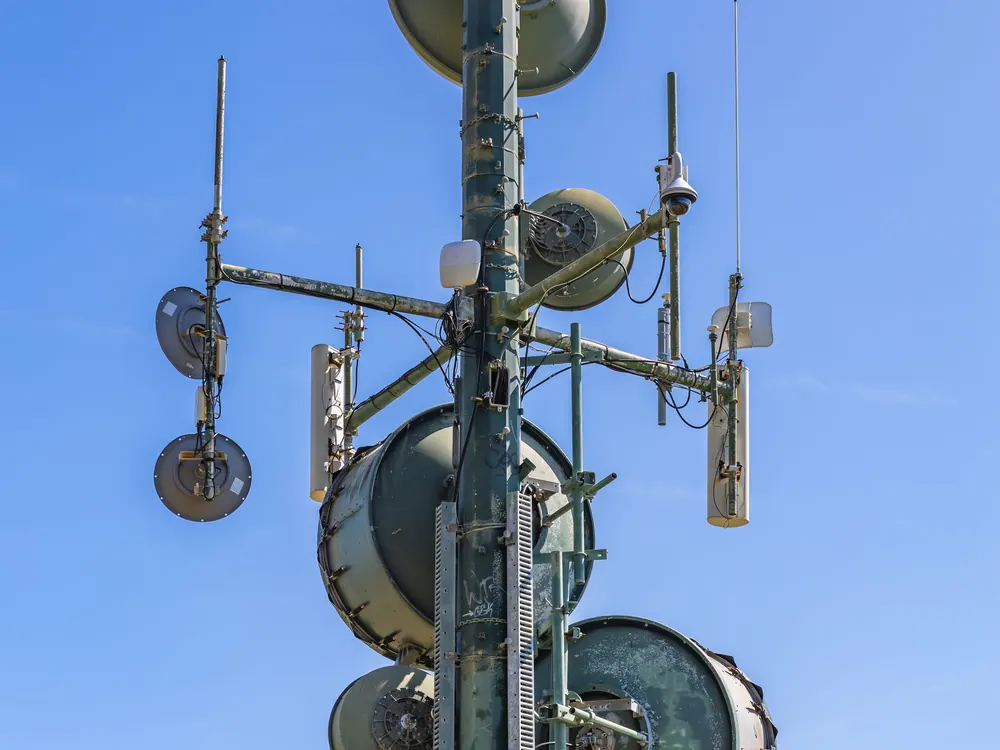

Mast carrying broadband communication antennas
02

Broadband Antennas

Wide impedance bandwidth for multi-band radios, surveillance receivers and EMC testing.

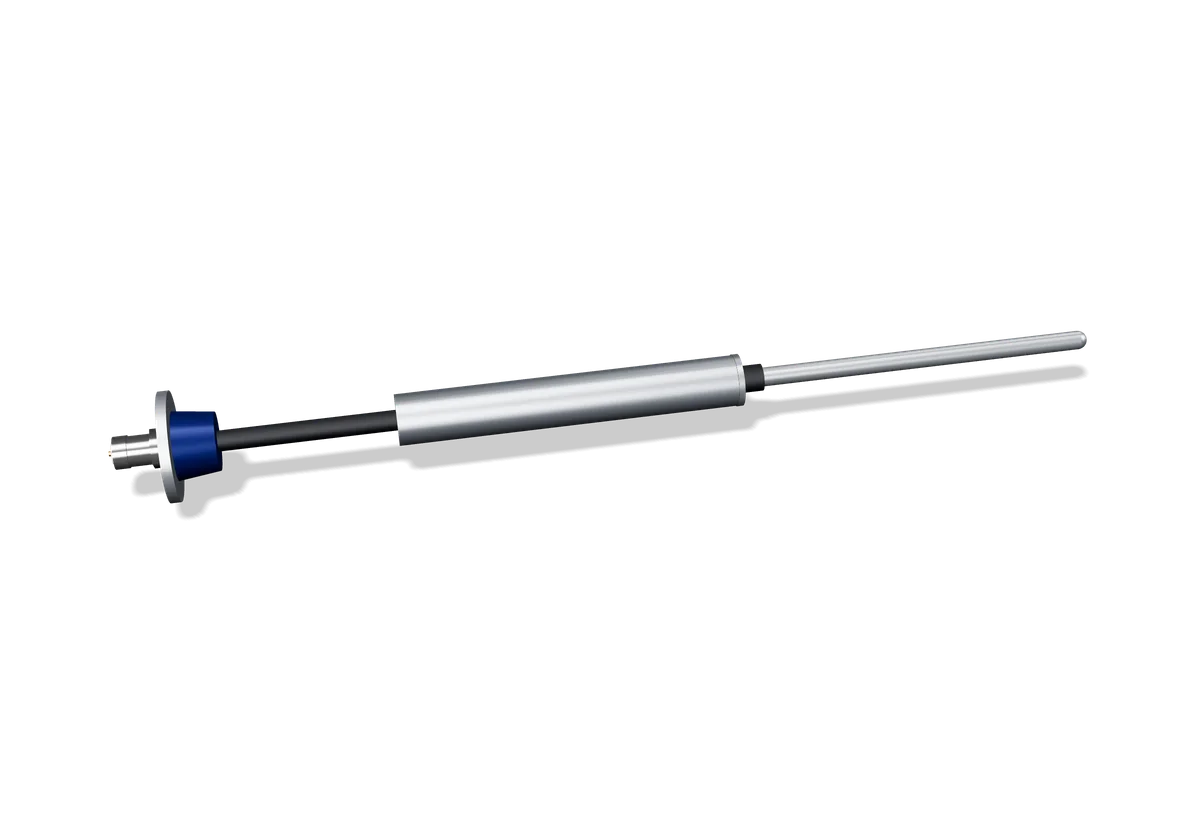

3D render of coaxial sleeve dipole antenna

Coaxial Dipole

A sleeve-fed dipole with an integrated coaxial balun, making a rugged omni element for vehicles and masts.

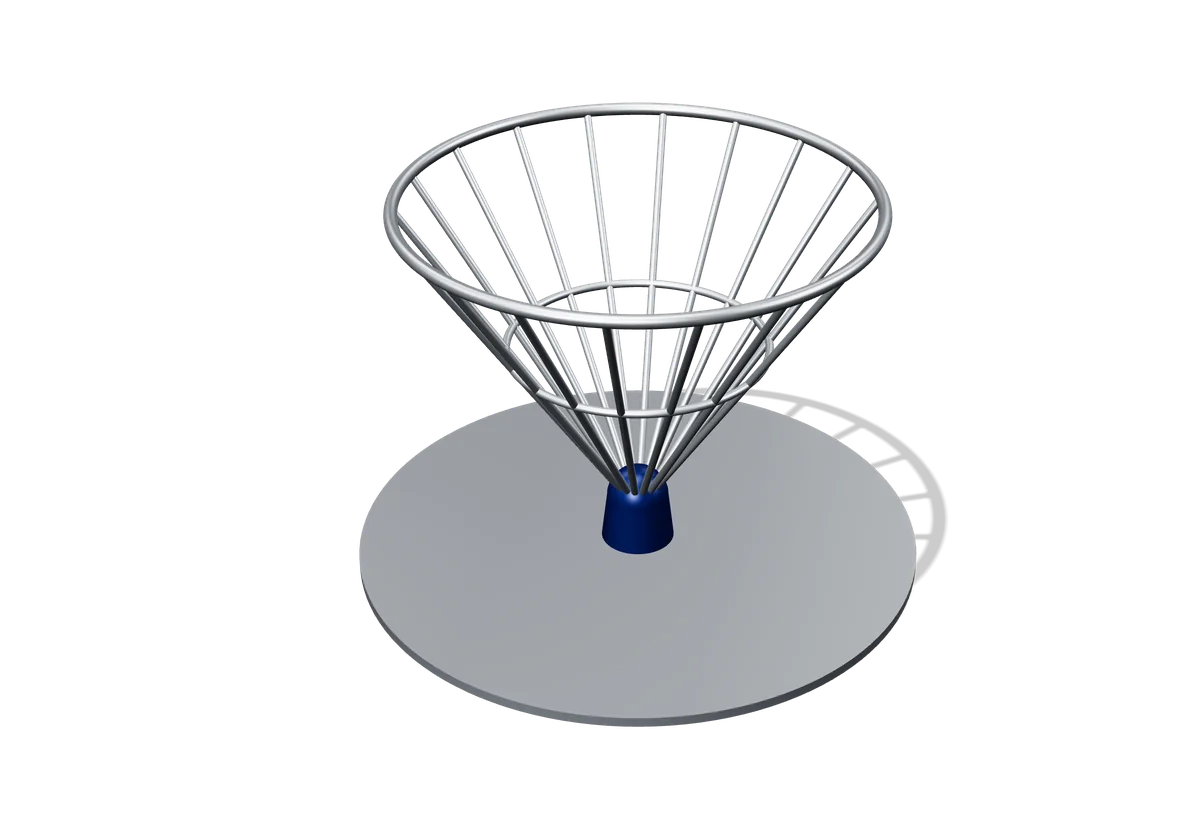

3D render of shuttlecock conical antenna

Shuttlecock Antenna

A conical radiator over a ground plane, giving wide bandwidth with an omnidirectional pattern.

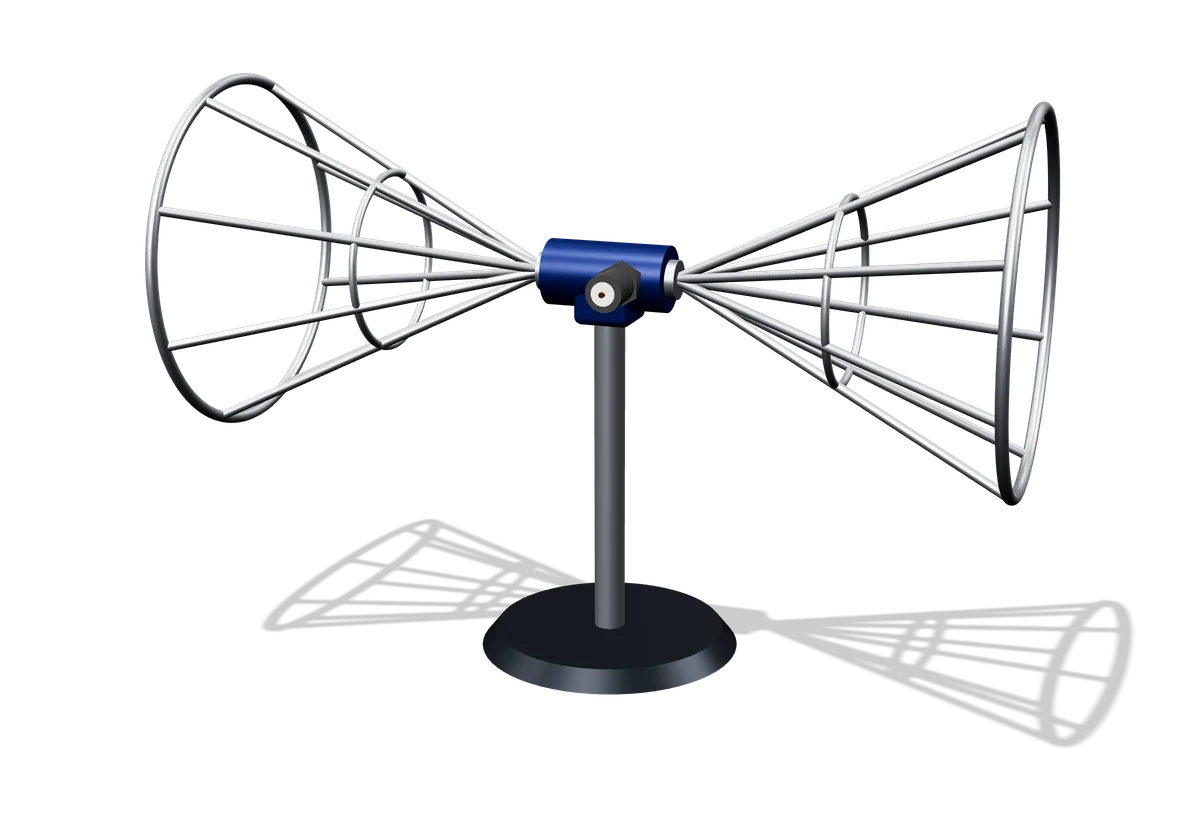

3D render of biconical antenna

Biconical Antenna

A twin-cone radiator with multi-octave bandwidth for EMC measurement, surveillance and wideband reception.

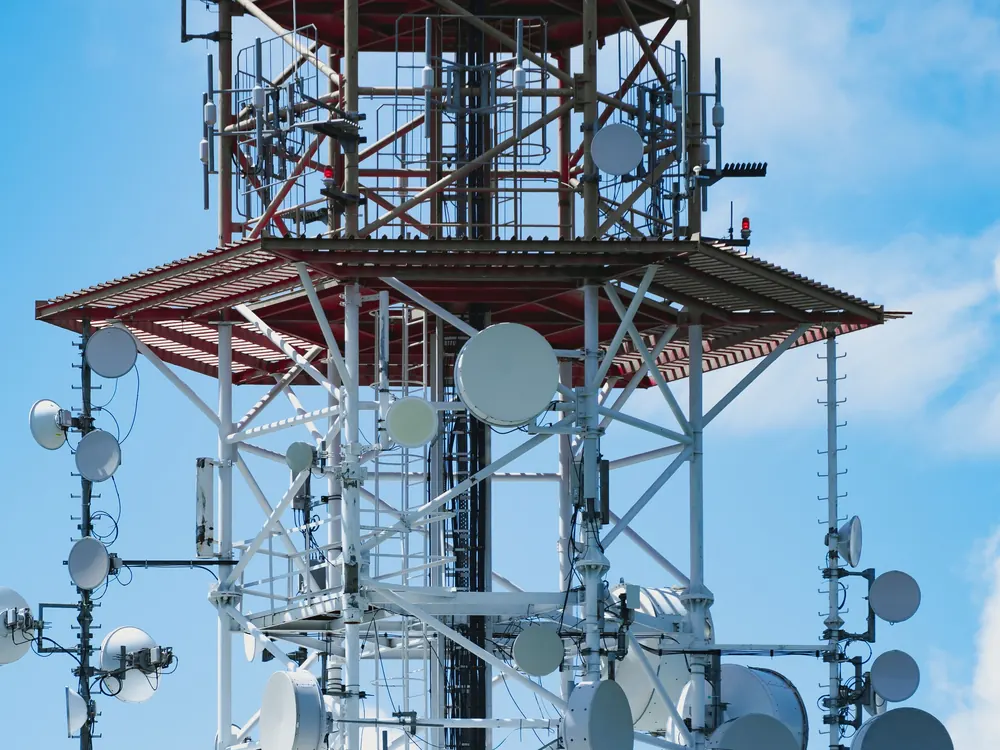

Communication tower carrying multiple wideband antennas
03

Frequency-Independent Antennas

Self-scaling geometries that hold gain, pattern and impedance nearly constant across very wide bandwidths.

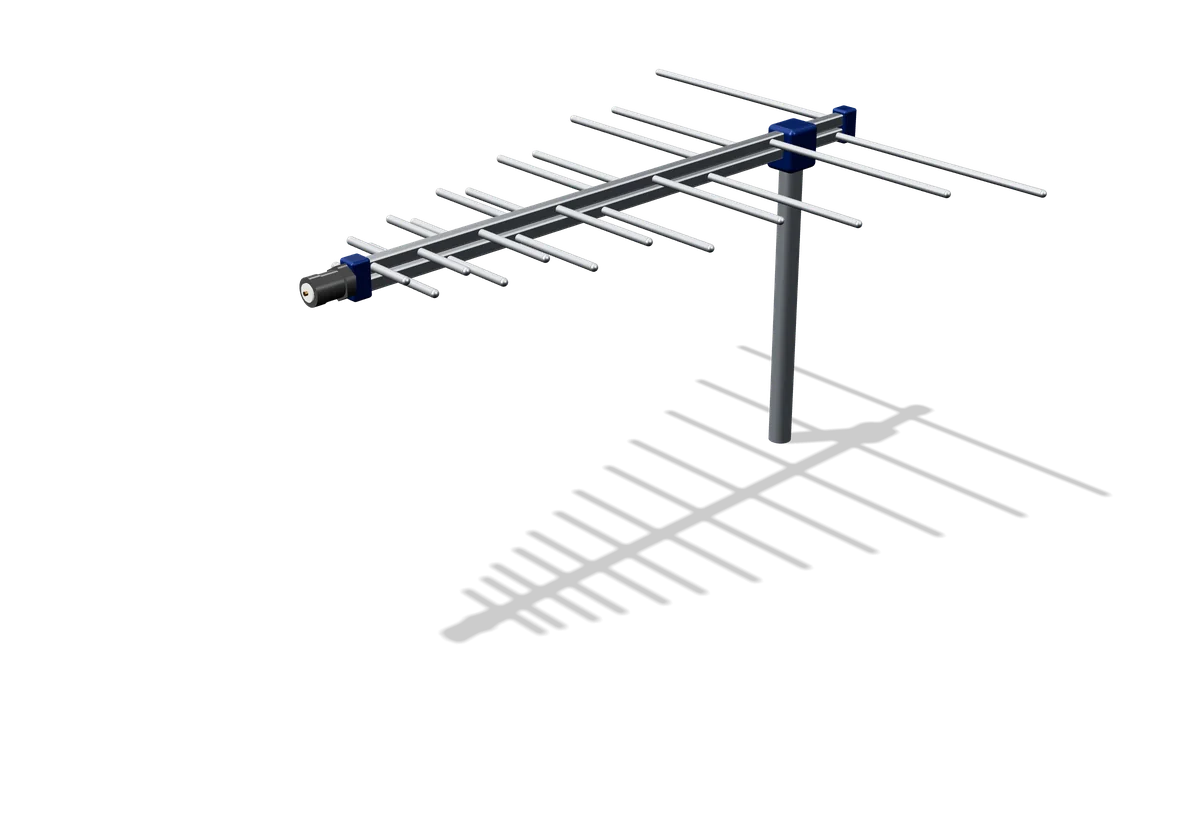

3D render of log-periodic dipole array

Log-Periodic Antenna

A directional dipole array with logarithmic scaling, giving near-constant gain across decade bandwidths.

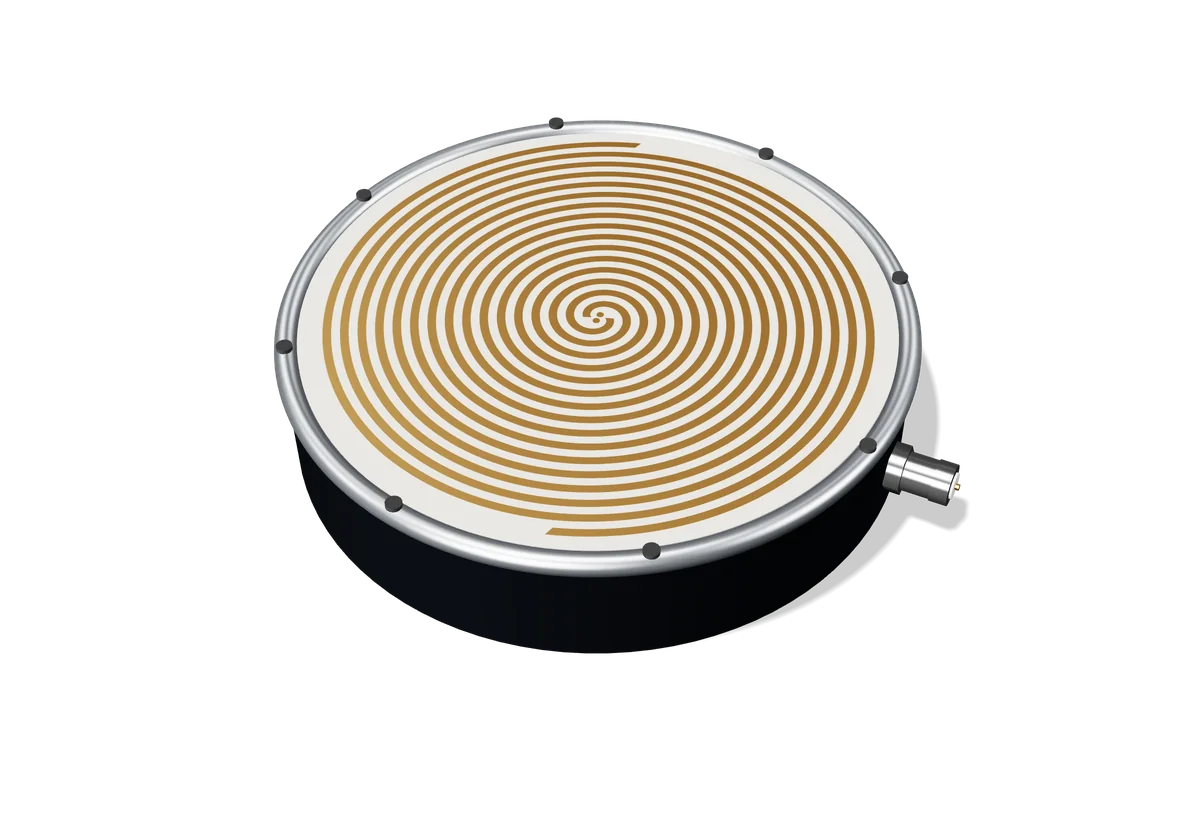

3D render of two-arm spiral antenna

Spiral Antenna

A planar two-arm spiral with circular polarisation, well suited to EW, ESM and direction-finding systems.

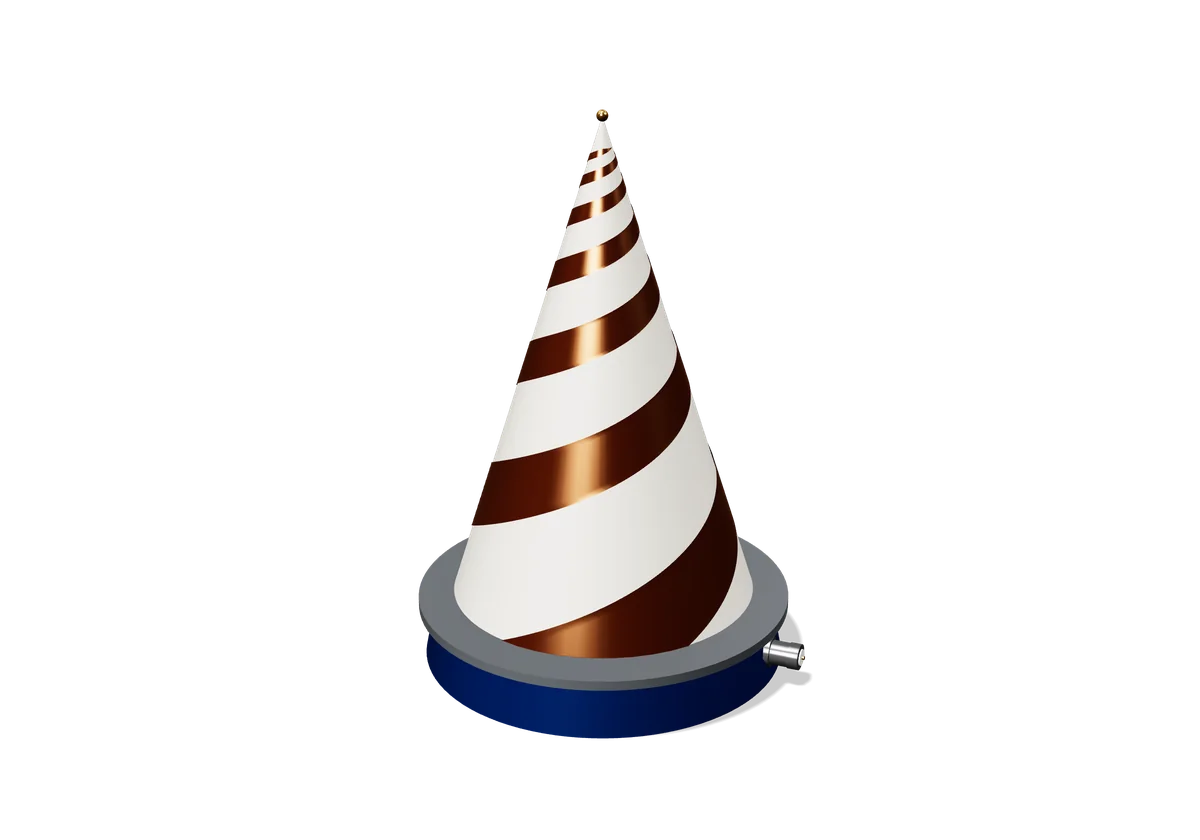

3D render of conical log-spiral antenna

Conical Log-Spiral

Spiral arms wound on a cone, giving a unidirectional, circularly polarised beam over multiple octaves.

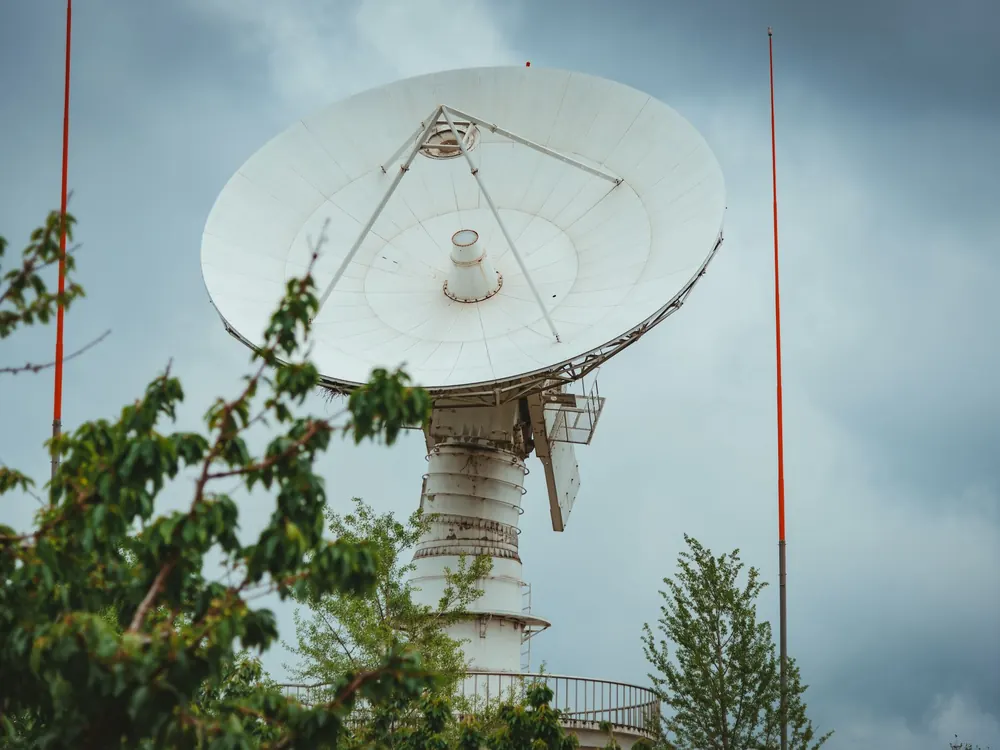

Large parabolic reflector antenna with sub-reflector
04

Reflector Antennas

High-gain, narrow-beam systems covering 200 MHz – 40 GHz in split bands.

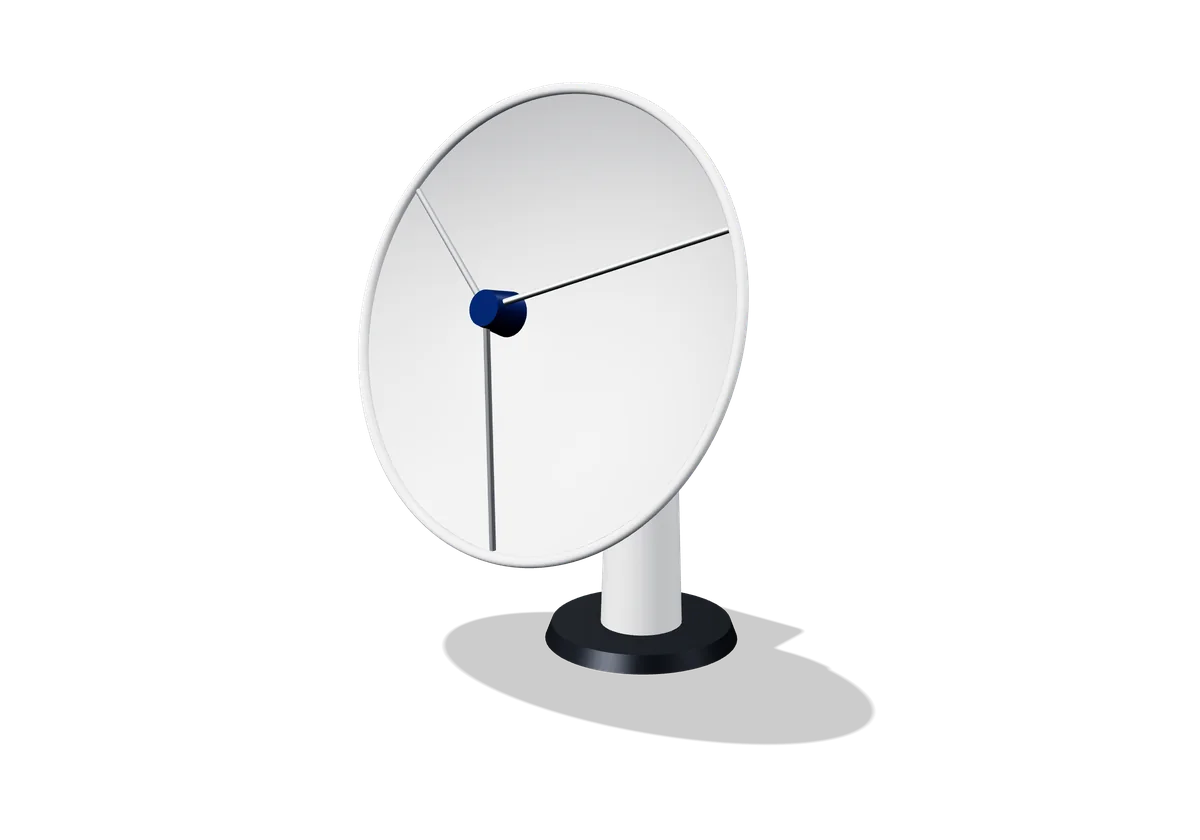

3D render of prime-focus parabolic reflector

Parabolic Reflector

A prime-focus dish for high gain and narrow beamwidth in point-to-point, tracking and SATCOM links.

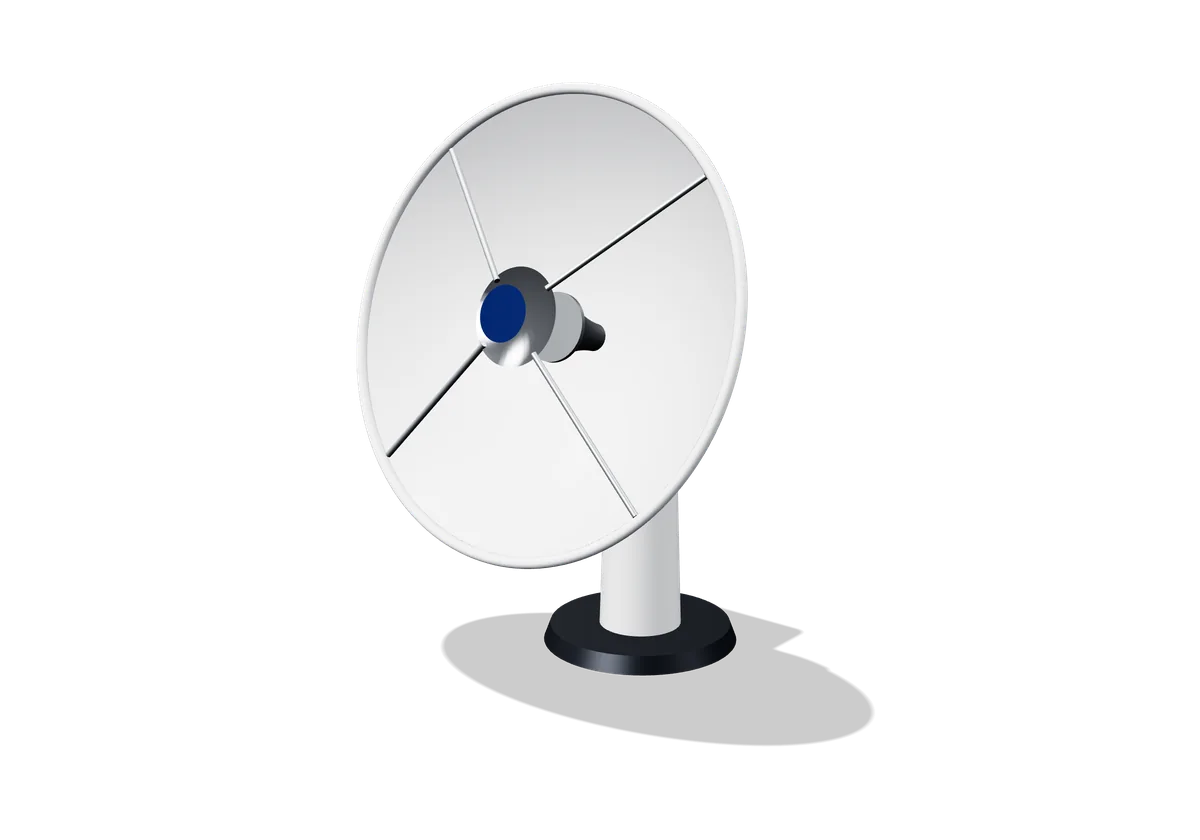

3D render of Cassegrain dual-reflector antenna

Cassegrain Reflector

A dual-reflector design with the feed at the vertex, giving a compact, low-loss layout with short feed runs.

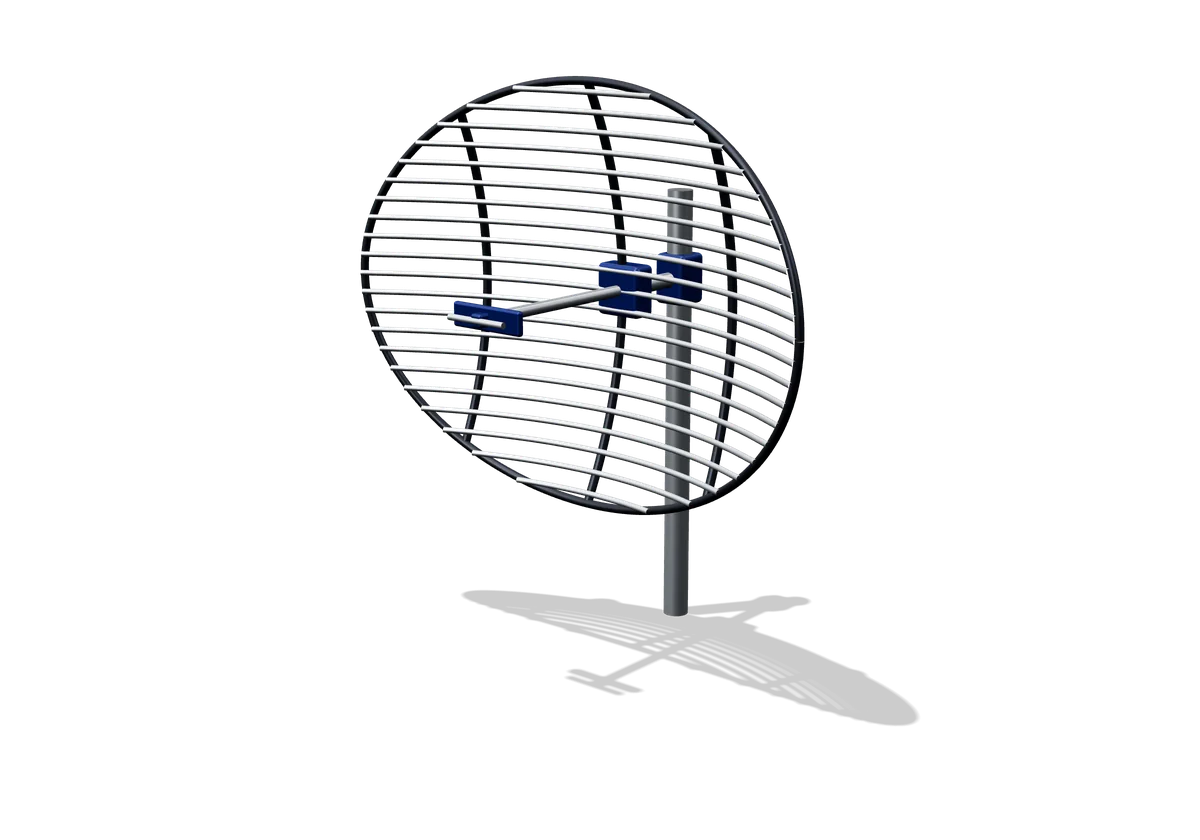

3D render of grid reflector antenna

Grid Reflector

An open-mesh parabolic grid with low wind loading and weight, suited to lower-band long-range links.

Close-up of RF integrated circuits on a printed circuit board
05

Phased Arrays

Electronically formed and steered beams for agile radar, EW and communication systems.

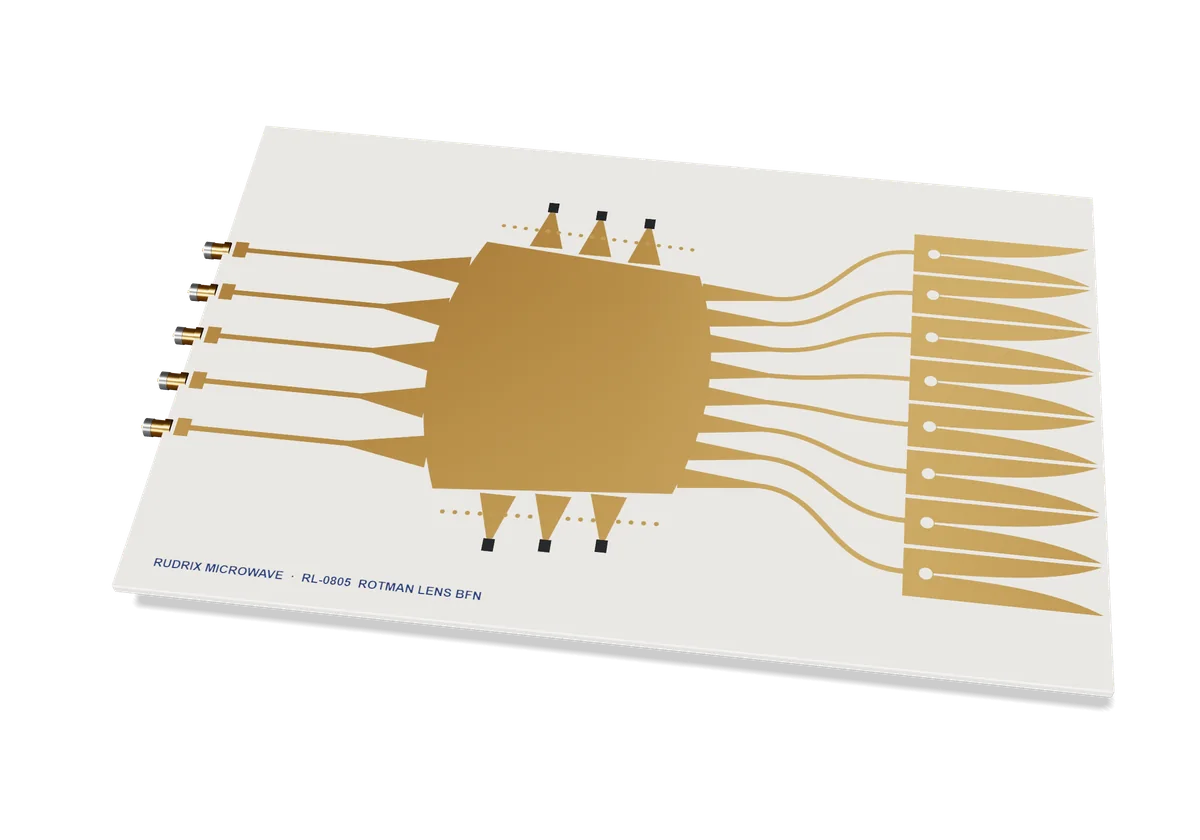

3D render of Rotman lens beamformer feeding a linear array

Phased Array using Rotman Lens

A true-time-delay lens beamformer that forms several simultaneous, squint-free beams over wide bandwidths.

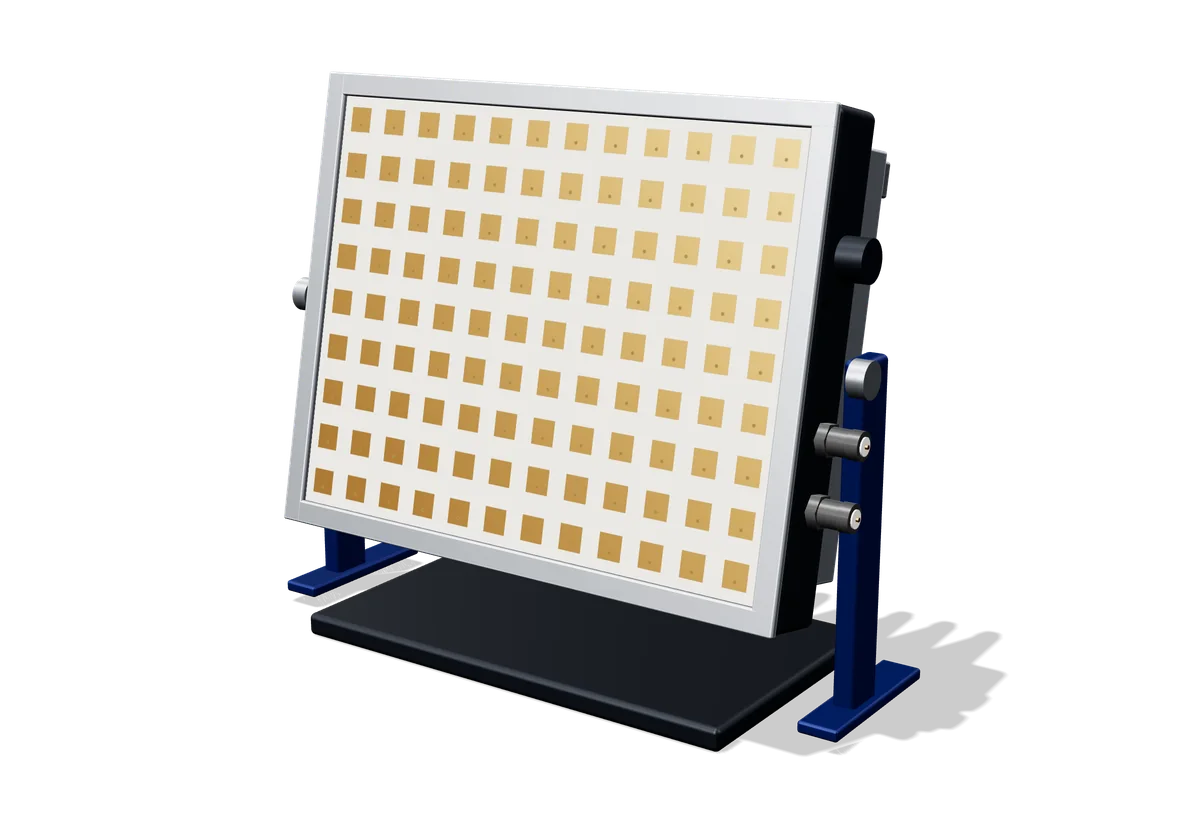

3D render of an active electronically scanned array panel

Active Phased Array

Per-element T/R control for fast, agile beam steering and graceful degradation, with no moving parts.

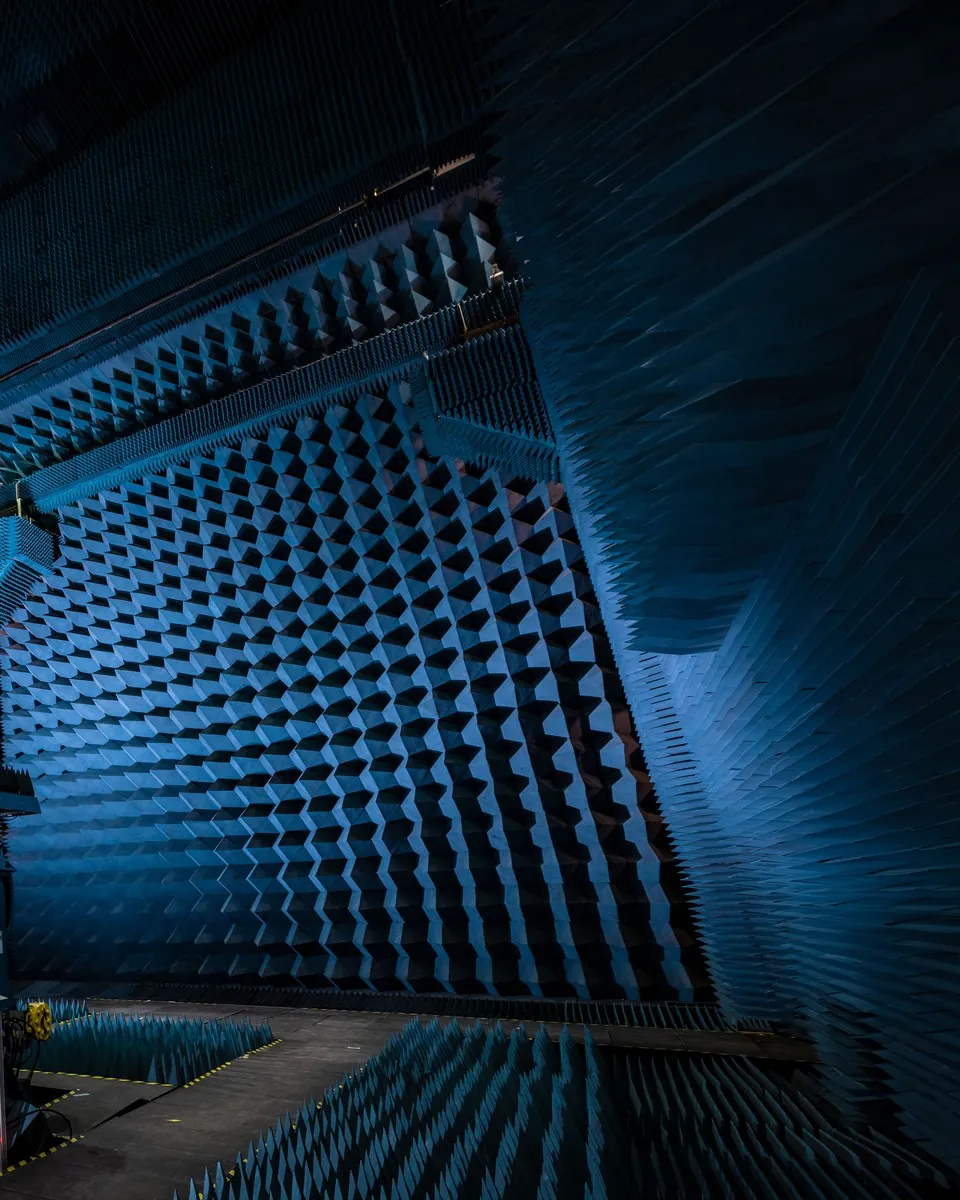

Anechoic antenna test chamber lined with pyramidal RF absorbers
Radiation-pattern, gain and VSWR validation

In-House Capabilities

From concept to qualified product, under one roof

  1. 01

    Requirement & Concept

    We capture frequency, gain, pattern, polarisation, environment and interfaces, and turn them into a design approach.

  2. 02

    EM Design & Simulation

    Full-wave electromagnetic modelling and optimisation, with mechanical and thermal constraints included.

  3. 03

    Prototyping

    Fast fabrication of radiators, PCBs, radomes and housings for early design validation.

  4. 04

    Testing & Validation

    VSWR and return loss, gain, radiation pattern and isolation measurements, plus environmental testing as required.

  5. 05

    Production & Support

    Controlled manufacturing, full documentation and long-term support across programme lifecycles.

Make in India

Indigenous technology. Sovereign capability.

We build critical RF technology in India. That reduces import dependence, keeps design IP in the country and gives national defence and infrastructure programmes responsive, locally engineered solutions.

  • Indigenous IPDesigns owned and developed in India
  • Local supply chainShorter lead times, easier support
  • Customer-centricClose collaboration with your engineers

Have a specification in hand?

Send us your frequency band, gain, polarisation and platform constraints. Our engineers will respond with a design approach.

Share Your Requirement

Contact Us

Let's build your next antenna

Tell us about your platform and requirements, and our engineering team will get back to you.
